Exercise Equipment Repair Parts

Neoprene Rubber Bumper Pad - 3" W x 6" L x 1"Thick - 2-Bolt Mount

Neoprene Rubber Bumper Pad - 3" W x 6" L x 1"Thick - 2-Bolt Mount
Neoprene Rubber Bumper Pad - 3" W x 6" L x 1"Thick - 2-Bolt Mount
Item# AFK-141
Regular price: $19.95
Our price: $13.50
Availability: Usually ships the next business day
This item is currently out of stock!

Product Description

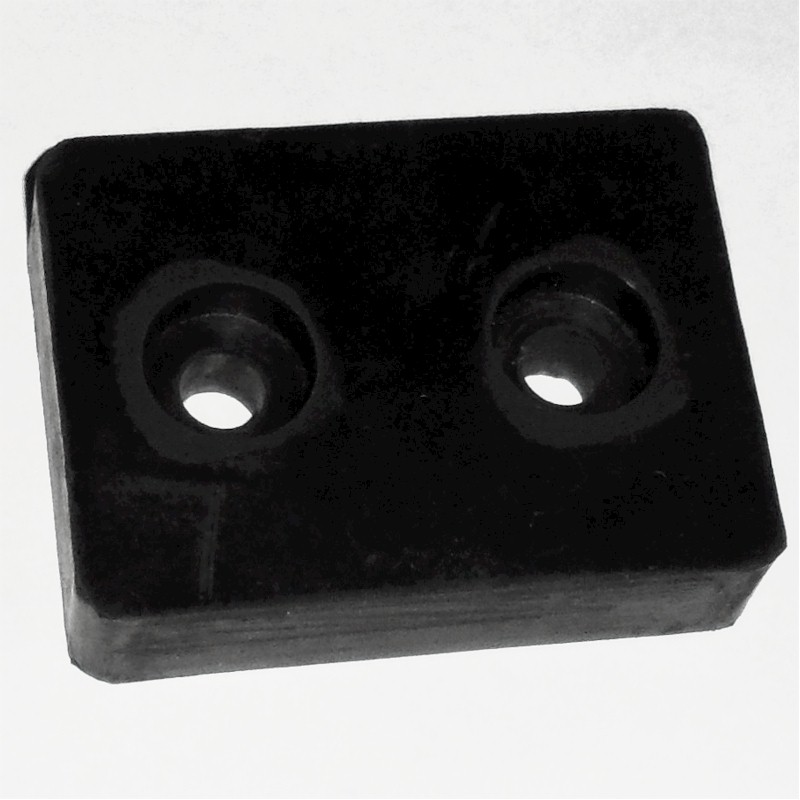

Neoprene Rubber Bumper Pad - 3" W x 6" L x 1"Thick - 2-Bolt Mount

Using 2 bolts, this hard rubber pad can be mounted to any flat surface where a hard resilient bumper is needed.

Note: It is suggested that 7/16" Hex bolts be used for mounting. The Bolt holes may accept a 1/2" hex bolt, however, the counterbore ID is too small to insert a socket wrench for tightening. Also, the counterbore depth of .390" is too shallow to mount with 7/16 or 1/2" Allen socket cap screws and have the screw heads below flush mount. Another option for mounting is using 1/2" Allen flat head screws, despite the counterbore not having a matching countersink. Yet another option is using Allen button socket screws to insure a flush mount.

These are used on various types of fitness equipment, but there are thousands of potential uses.

Features

  • Made of tough black neoprene rubber - moderately hard material
  • Width: 3" Nominal - 3.024" Actual Measured
  • Length: 6" Nominal - 6.024 Actual Measured
  • Thick: 1" Nominal - 1.039" Actual Measured
  • Bolt Hole ID: 1/2" Nominal - .498" Actual Measured
  • Bolt Counterbore ID: 1" Nominal - .980" Actual Measured
  • Bolt Counterbore Depth: .390" Deep
  • Bolt Holes are 4" apart on-center
  • Radius all 4 corners
